光伏行业还原电炉专用软管

绝缘软管JY15

Applications:

It is suitable for conveying purified water through the cable in the water cooling system of the internal reduction electric furnace with a voltage of 15KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.

Construction:

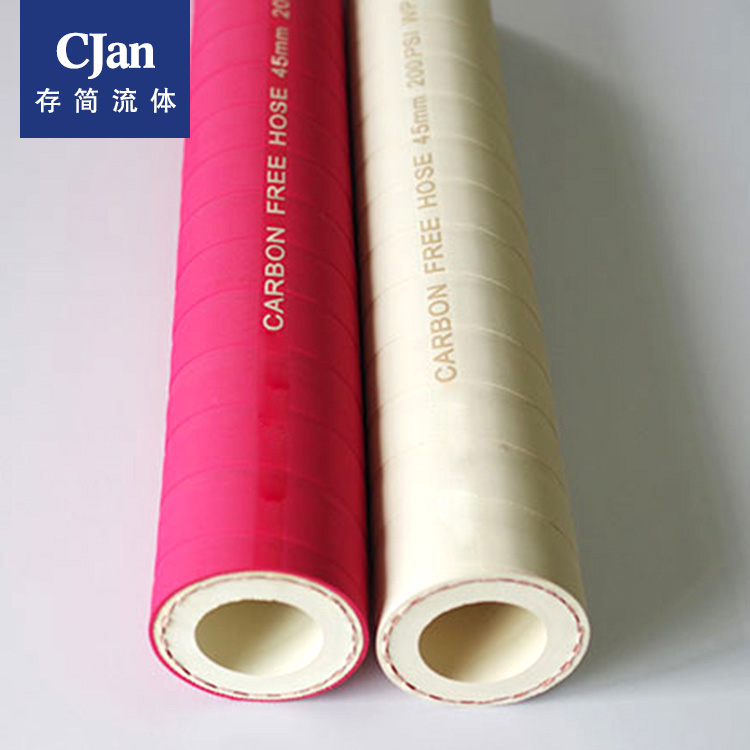

Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.

Reinforcement: high strength polyester fiber.

Cover: fabric impression, red or green, pure carbon - free, high - insulation EPDM synthetic rubber.

Shielding layer: Copper mesh braid layer, exterior covering high insulation rubber layer.

Electrical resistance: high insulation, excellent low leakage current. At 15KV DC/AC voltage, the leakage current is less than 20 Micro Amp.

Temperature range: -40 °C +120 °C

Environmental standards: EU pahs-2, REACH, ROHS directive.

Technical standard: HG/T2184, CJAN

应用范围：

适用于电压15KV内还原电炉水冷系统穿电缆输送纯净水。纯净无碳，高绝缘，耐磨、抗老

化。

软管结构：

内管：白色，光滑、纯净、无碳、高绝缘的EPDM合成橡胶。

增强层: 高强度聚酯纤维线。

外管：红色，布面，纯净无碳、高绝缘EPDM合成橡胶；其他白色/绿色/蓝色可按客户要求定制。

屏蔽层：铜网编织层，外表覆盖高绝缘橡胶层。

耐电压：

高绝缘，优秀的低泄露电流。在15KV DC/AC电压下，泄露电流小于20 Micro Amp。

适用温度：-40 to 120 ℃。

环保标准：符合欧盟PAHS-2、REACH、ROHS指令。

技术标准：HG/T2184, CJAN
