硅胶包覆不锈钢丝编织波纹特氟龙管 TCSSI

Products/产品目录

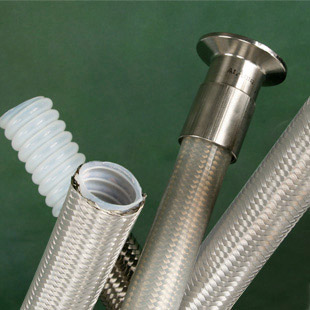

结构：内管为波纹状的PTFE软管，外覆不锈钢丝编织和透明硅胶层
温度范围：-60℃至+200℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等。不宜用在蒸汽冷水循环。
可根据客户要求，定制成黑色抗静电内管
可根据客户要求，硅胶层也可定制成白色或彩色


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

CJFLEX 硅胶包覆不锈钢丝编织波纹特氟龙管

TYPE TCSSI

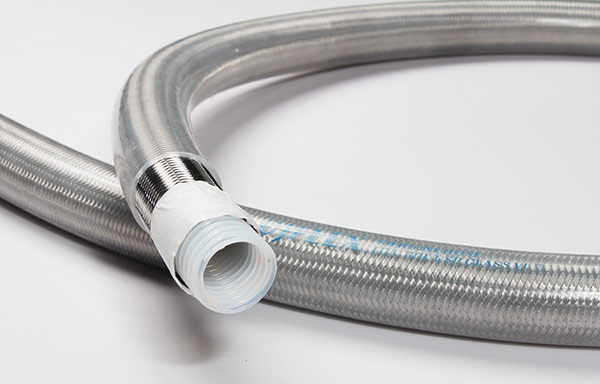

Construction: Type TCSSI is manufactured from convoluted PTFE tube with stainless steel over braid and transparent silicone cover.

Temp. Range: -60°C and 200°C.

Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on. Not recommended for steam-cold water cycling.

Virgin and anti-static liners are available.

This hose has the advantage of superb flexibility, zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.

Certification: FDA

结构：内管为波纹状的PTFE软管，外覆不锈钢丝编织和透明硅胶层

温度范围：-60℃至+200℃

应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等。不宜用在蒸汽冷水循环。

可根据客户要求，定制成黑色抗静电内管

可根据客户要求，硅胶层也可定制成白色或彩色

具有柔韧性高、表面光滑易擦洗、零摩擦、耐高压和耐温广的优势，可进行CIP和SIP清洗

符合FDA认证

编码	内径		最小外径	内管壁厚	弯曲半径	工作压力	爆破压力
编码	in.	mm	mm	mm	mm	bar	bar
TCSSI010	3/8"	9.5	18.1	0.75	25	110	440
TCSSI013	1/2"	12.7	21.1	0.75	35	100	400
TCSSI016	5/8"	15.9	26.9	0.75	65	85	340
TCSSI019	3/4"	19	30.4	0.90	65	80	320
TCSSI025	1"	25.4	38.4	1.00	75	60	240
TCSSI032	1-1/4"	32	50.1	1.00	100	45	180
TCSSI038	1-1/2"	38	55.4	1.00	140	35	140
TCSSI051	2"	50.8	68.9	1.10	180	25	100
