PURPLE SNAKE 专业酒类输送软管
PURPLE SNAKE 专业酒类输送软管
  • 内胶:均为CIIR内胶, 白色,光滑
    加强层:合成纤维
    外胶:CR/SBR/NR高级橡胶,红色
    工作温度:+85℃(+95℃最多60分钟)
    适用标准:TU Munchen,Weihenstephan 认证
电子邮箱 QQ在线 打印此页 收藏此页
Description/产品详情
PURPLE SNAKE 专业酒类输送软管
应用:
PURPLE SNAKE 是一款完美的软管,用于酿酒,灌装及诸多酿酒,饮料生产线,适用于98%纯酒精。
优点:
耐臭氧,耐磨性极好
白色耐油脂内胶层不含增塑剂,对气味没有任何影响
弹性及承压性能好,即使在极端恶劣的工况下也能保持长时间使用寿命
可以用常规方法清洗或者用CIP系统清洗
可以用+130℃蒸汽清洗(最多20分钟)
技术参数:
内胶:均为CIIR内胶, 白色,光滑
加强层:合成纤维
外胶:CR/SBR/NR高级橡胶,红色
工作温度:+85℃(+95℃最多60分钟)
适用标准:TU Munchen,Weihenstephan 认证

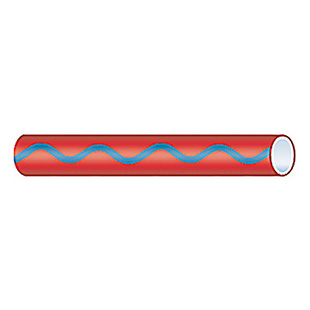

标志:轴向蓝色波纹标志于红色表面
备注:
3年质保(3年质保期是指在流体介质使用正确,接头装配正确,以及推荐的工况下正确使用软管)

PURPLE SNAKE® – Internationally the no.1 hose
for the brewing and beverage industry
Applications:
PURPLE SNAKE® is the ideal hose for breweries, winepresses, bottlers and many other installations in the brewing, beverage and spirits industry. The white lining is absolutely neutral to taste and odour, homogeneous, smooth and free of plasticizers. Flexibility, pressure resistance and long service life – even under extreme working conditions – are additional advantages, which make the hose most popular all over the world.
PURPLE SNAKE® can easily be cleaned conventionally or by CIP installations.
Together with our swaged coupling systems and rubber protection rings it becomes the ideal hose assembly!
Description:
white, non-porous and smooth CIIR lining
qabsolutely neutral to taste and odour
suitable for pure alcohol up to 98%
temperature range up to +85°C         (+95°C max. 60 minutes)
can be steamed up to +130 °C (max. 30 minutes)
working pressure up to 16 bar
reinforcements: synthetic fibres
CR/SBR/NR-cover, resistant to ozone, weather, UV and abrasion
approved by TU München, Weihenstephan (sensoric test)
3 years’ warranty(The 3 years' warranty with regard to PURPLE SNAKE® refers to faulty material and manufacture provided that couplings have been fitted by experts, that the recommended working conditions have been respected and that the hose has been used properly.)
内径 外径 工作压力 爆破压力 弯曲半径 重量 包装长度
(in) (mm) (mm) (bar) (bar) (mm) (kg/m) (m)
1/2 13 20 16 ≥ 48 80 0.300 40
5/8 16 24 16 ≥ 48 100 0.400 40
3/4 19 29 16 ≥ 48 120 0.500 40
1 25 37 16 ≥ 48 160 0.800 40
1-1/9 28 42 16 ≥ 48 180 1.000 40
1-1/4 32 48 16 ≥ 48 200 1.300 40
1-1/3 35 53 16 ≥ 48 220 1.600 40
1-1/2 38 56 16 ≥ 48 240 1.700 40
1-9/16 40 58 16 ≥ 48 250 1.700 40
1-3/4 45 65 16 ≥ 48 280 2.200 40
2 50 70 16 ≥ 48 310 2.350 40
2 50** 66 16 ≥ 48 280 2.210 40
2-3/8 60 86 16 ≥ 48 370 3.700 40
2-5/8 65 89 16 ≥ 48 400 3.510 40
3 75 99 16 ≥ 48 450 4.460 40
3 75** 91 16 ≥ 48 410 3.350 40
3-1/8 80 108 16 ≥ 48 500 5.200 40
3-1/8 80** 96 16 ≥ 48 450 3.550 40
4 100 130 16 ≥ 48 680 7.000 40
4 100** 118 16 ≥ 48 550 5.300 40
