EPDM食品级吸排软管 TEFSD
EPDM食品级吸排软管 TEFSD
  • 内管:白色EPDM,光滑,无臭无味
    增强层:高强度合成纤维和螺旋钢丝加固
    外管:蓝色EPDM,表面布纹,耐磨,耐臭氧和耐老化
    温度范围:-40°C~+140°C,在110℃下灭菌30分钟
    适用标准及认证:EU 1935/2004;FDA 21 CFR 177.2600
电子邮箱 QQ在线 打印此页 收藏此页
Description/产品详情

EPDM食品级吸排软管 TEFSD


Applications
Particularly designed for additional air lines (temperature up to 140°C) on road tankers carrying bulk products. suction and discharge of liquid food-stuffs such as milk, wine, beer, cider, fruit juice, soda, vinegar and alcohol up to 96 %, with exception of fatty foodstuffs and oils, loading or unloading bays for road and rails tankers.
Advantages
Good flexibility and easy to handle.
Suitable for road tankers equipment except compressor lines
A smooth, seamless, white food grade tube that does not propagate bacterial growth
Resistant to cleaning with detergents at temperatures up to + 140 °C
Cover with very good ageing and weather resistance
Contains no phthalate

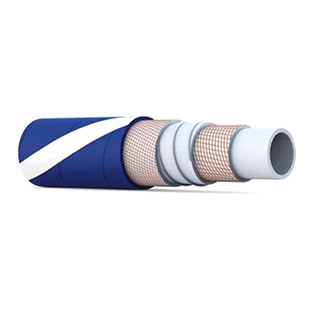

Technical description
Inner tube: food grade quality EPDM, white, smooth.
Reinforcement: synthetic textile with embedded steel helix.
Cover: weather resistant EPDM, blue, fabric impression.
Temperature range: - 30 °C to + 100 °C, and + 140 °C for additional air.
Standard/Approval:
EU 1935/2004 and 2023/2006.FDA 21 CFR 177.2600

German BFR. French legislation.


使用范围:
多用途软管,专业抽送脂肪类食物、葡萄酒、啤酒、饮用水等。
软管结构:
内管:白色EPDM,光滑,无臭无味
增强层:高强度合成纤维和螺旋钢丝加固
外管:蓝色EPDM,表面布纹,耐磨,耐臭氧和耐老化
温度范围:-40°C+140°C,在110下灭菌30分钟
适用标准及认证:
EU 1935/2004FDA 21 CFR 177.2600

德国法规:BFR建议第21款,ADI freeD.M. 21/03/73


编码 内径 外径 弯曲半径 工作压力 爆破压力 真空度 重量/米
inch mm mm mm bar bar bar Kg/m
TEFSD019 3/4" 19 29 80 10 30 0.9 0.67
TEFSD025 1" 25 35 125 10 30 0.9 0.8
TEFSD032 1-1/4" 32 44 160 10 30 0.9 1.23
TEFSD038 1-1/2" 38 50 190 10 30 0.9 1.38
TEFSD051 2" 51 64 255 10 30 0.9 1.88
TEFSD064 2-1/2" 63.5 76 320 10 30 0.9 2.60
TEFSD076 3" 76 90 440 10 30 0.9 3.00
TEFSD090 3-1/2" 90 104 450 10 30 0.9 4.08
TEFSD102 4" 102 118 560 10 30 0.9 4.60
